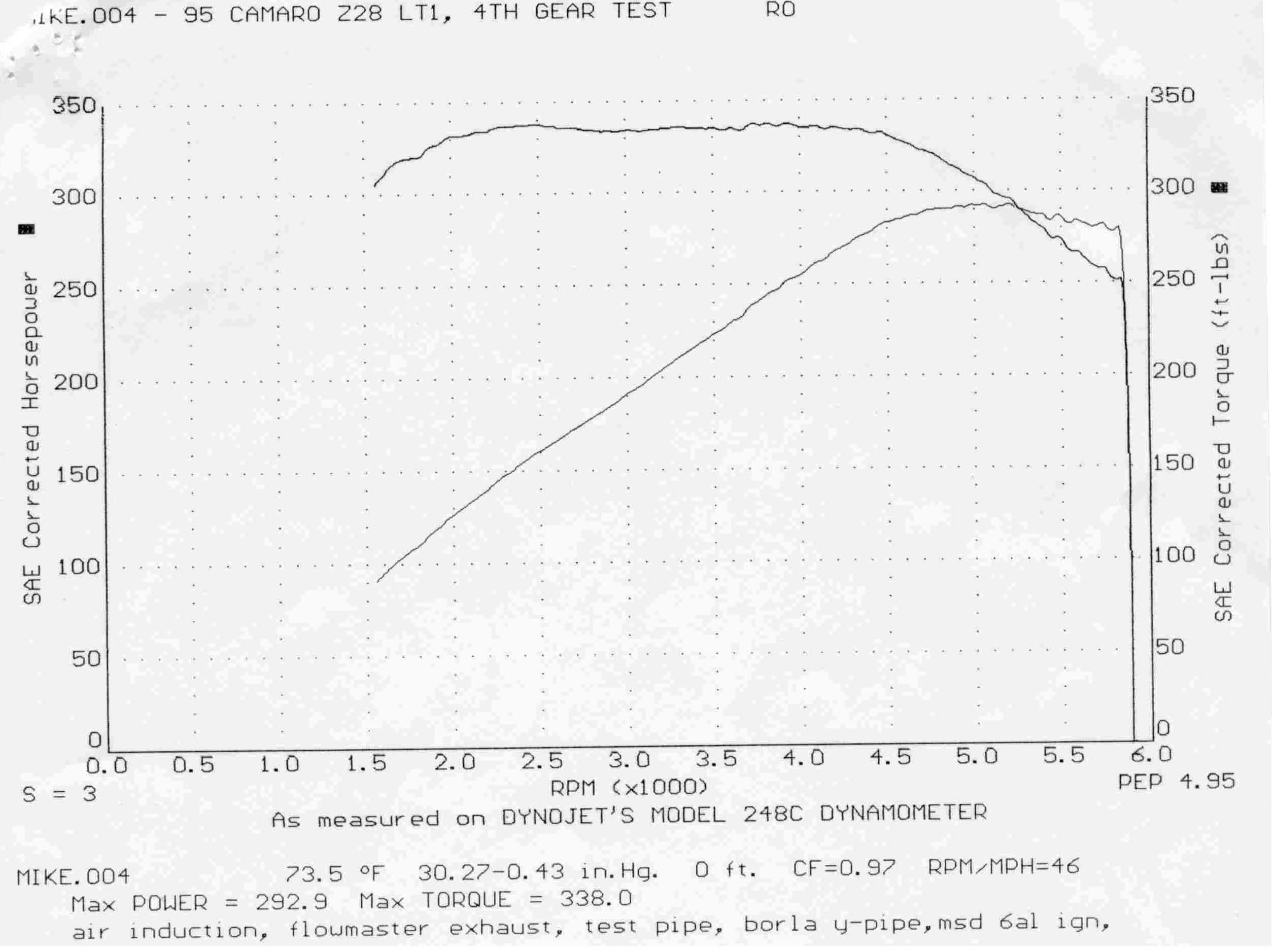

I have lost my original Dyno Graphs for my Z due to the fact that I never thought I would be setting up a web page. Needless to say I never had the intention of modifying my Z past the point of a cold air induction system. So here I stand, These are some old dyno tables I have come across So Enjoy and here they are.
Uncorrected Numbers
RPM
RWHP TOURQUE
1750.0
109.60 328.90
2000.0
129.90 341.00
2250.0
148.10 345.80
2500.0
165.30 348.00
2750.0
180.30 344.40
3000.0
196.30 343.70
3250.0
213.40 344.90
3500.0
229.70 344.60
3750.0
247.20 346.30
4000.0
262.50 344.70
4250.0
278.10 343.70
The following runs were done with these
4500.0
291.40 340.10
Modifications. Moroso CAI, Flowmaster AT,
4750.0
298.30 329.80
Borla 2 3/4 Y Pipe, Offroad pipe, MSD 6AL
5000.0
300.70 315.90
LT4 KM, MAFS ported, 1LE Bellows, IAT
5250.0
298.60 298.70
Relocated, 1LE DS.
5500.0
294.10 280.80
5750.0
289.80 264.70
I Haven't been able to get the Z
to the dyno since all the new additions have been strapped on but you can
be sure to see a graph sometime this spring when I take the Z out of hybernation.
